Making inference from nonprobability online surveys

Author

Camilla Salvatore

Introduction

This material is part of the workshop "Making inference from nonprobability online surveys" organized during the GOR conference.

Click on the link to download the data.

In this practical session we learn how to do inference with nonprobability samples; in the first part we discuss classic approaches (frequentist): raking, calibration, Inverse probability weighting, mass imputation and doubly robust methods. In the second part we apply the Bayesian MRP.

Frequentist approaches

In these exercises we use the nonprobsvy package developed by Maciej Beręsewicz and Łukasz Chrostowski. You can find additional information about the package here:

The data

In this exercise, we will analyze data from the 2003 U.S. Michigan Behavioral Risk Factor Surveillance Survey, available in the PracTools package. The dataset, named mibrfss, includes various demographic and health-related variables. We use this dataset as the basis in order to simulate a population of size 100000 and different sampling scenarios. In particular, the data we provide you with are:

  1. Population Totals: pop_tot.rda – Contains population totals.

  2. Probability Sample (PS): p_sample.rda – A high-quality sample of size 10,000, assumed to be a simple random sample.

  3. Non-Probability Sample (NPS): np_sample.rda – A sample of size 1,000 with self-selection and coverage issues.

We consider a subset of the variables available in the mibrfss dataset, namely:

  • SMOKE100 : Smoked 100 or more cigarettes in lifetime (1 = Yes; 2 = No)

  • AGECAT : Age group (1 = 18-24 years; 2 = 25-34 years; 3 = 35-44 years; 4 = 45-54 years; 5 = 55-64 years; 6 = 65+)

  • INETHOME : Has access to the Internet at home (1 = Yes; 2 = No)

  • EDCAT : Education level (1 = Did not graduate high school; 2 = Graduated high school; 3 = Attended college or technical school; 4 = Graduated from college or technical school)

For this exercise, we assume that the non-probability sample (NPS) was collected through social media advertisements. This approach introduces potential biases because only individuals with internet access and who are active on the specific social media platform could participate. Consequently, the NPS may suffer from both self-selection bias and coverage bias (since the sample is restricted to those with internet access and a presence on social media).

In contrast, we assume that the probability sample (PS) was obtained through a simple random sampling method. This sample is considered a high-quality reference sample, and for simplicity, we do not need to account for any design or calibration weights.

Objectives

  • Estimate the proportion of U.S. individuals aged 18+ who smoked 100 or more cigarettes in their lifetime

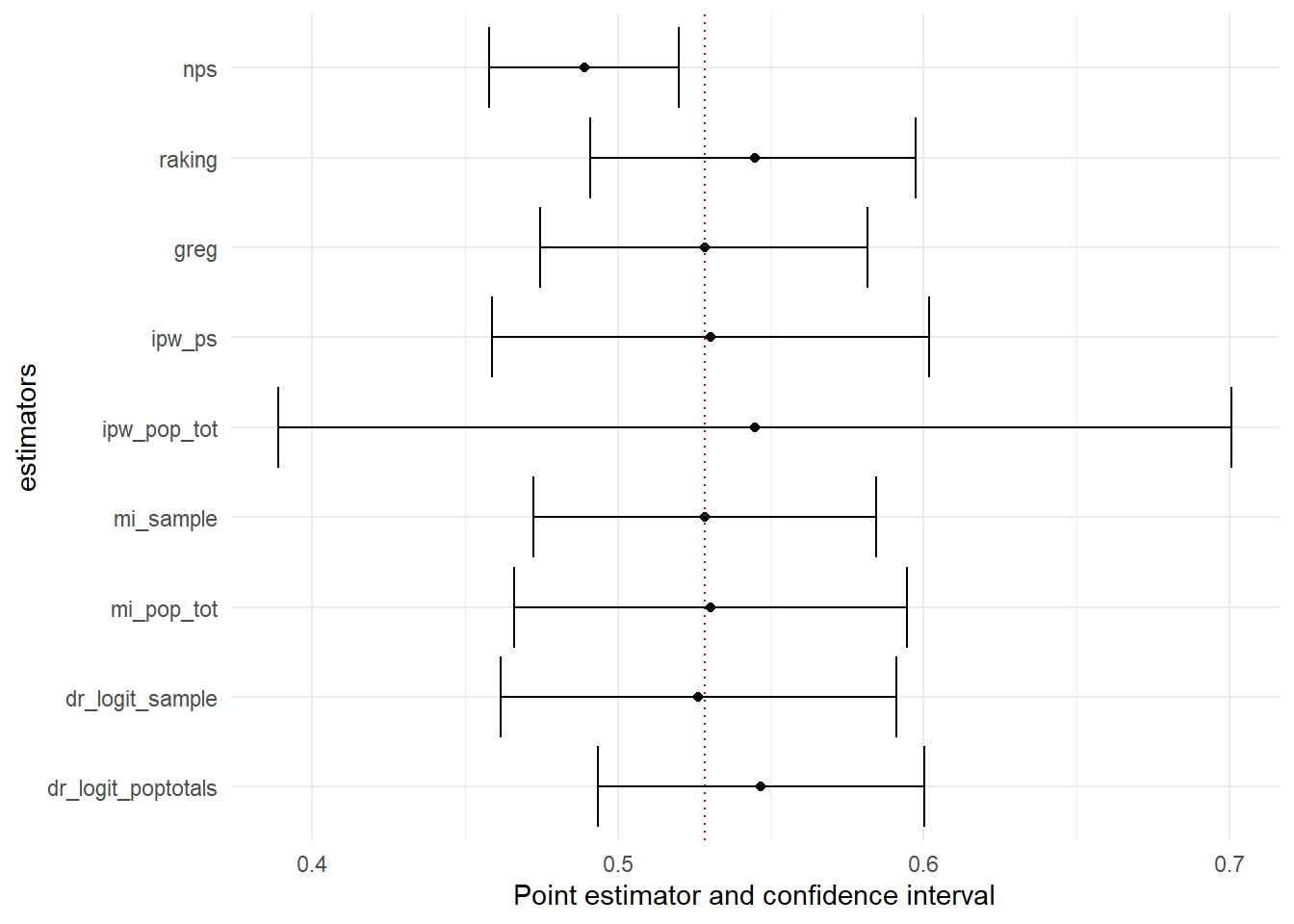

  • Compare different estimation techniques against the true population value of 52.85%

Preliminary analyses

  1. Before starting, load the necessary R packages:
library(tidyverse)
library(ggplot2)
library(survey)
library(nonprobsvy)
library(PracTools)
  1. Import and prepare the data: Load the datasets and inspect the data. Pay attention to the data format.
load("p_sample.rda")
load("np_sample.rda")
load("pop_tot.rda")

Task: Familiarize yourself with the datasets.

Note

  • The PS survey does not contain the target variable of interest, i.e., SMOKE100

  • You might encounter some issues when the variables are categorical. I suggest to save binary variables as numeric and variables with more than one level as character.

  • Pay attention to the pop_tot structure. It contains the population totals and it is formatted in order to match the nonprobsvy and survey package naming terminology. The (Intercept) simply contains the size of the population.

pop_tot
(Intercept)     AGECAT2     AGECAT3     AGECAT4     AGECAT5     AGECAT6
     100000       13408       19554       22526       16875       21879
   RACECAT2    RACECAT3      EDCAT2      EDCAT3      EDCAT4   INETHOME1
       8255        5113       30925       28464       31668       65370

  1. Compare the distribution of the covariates in the probability and nonprobability samples:

    You can use prop.table.

# Age
prop.table(table(p_sample$AGECAT))

     1      2      3      4      5      6
0.0564 0.1351 0.1992 0.2211 0.1718 0.2164
prop.table(table(np_sample$AGECAT))

    1     2     3     4     5     6
0.126 0.143 0.219 0.241 0.152 0.119
# Race
prop.table(table(p_sample$RACECAT))

     1      2      3
0.8699 0.0792 0.0509
prop.table(table(np_sample$RACECAT))

    1     2     3
0.878 0.061 0.061
# Education
prop.table(table(p_sample$EDCAT))

     1      2      3      4
0.0875 0.3109 0.2801 0.3215
prop.table(table(np_sample$EDCAT))

    1     2     3     4
0.111 0.256 0.267 0.366
# Internet at home
prop.table(table(p_sample$INETHOME))

   0    1
0.35 0.65
prop.table(table(np_sample$INETHOME))

   0    1
0.04 0.96

Individuals in the nonprobability samples are more young, with more graduated from collage or technical school higher education and mainly with internet at home.

  1. Define the sampling desing: Specify the sampling designs for both the PS and NPS samples using the svydesign function.
ps_design <- svydesign(ids = ~ 1,data = p_sample)
Warning in svydesign.default(ids = ~1, data = p_sample): No weights or
probabilities supplied, assuming equal probability
nps_design <- svydesign(ids = ~ 1,data = np_sample)
Warning in svydesign.default(ids = ~1, data = np_sample): No weights or
probabilities supplied, assuming equal probability
  1. Estimate Proportion from Non-Probability Sample

Use the svymean and/or svyciprop functions to calculate the proportion and its confidence interval. Save it in a compare tibble where you will add the estimates obtained with different methods.

svymean(~ SMOKE100, nps_design)
          mean     SE
SMOKE100 0.489 0.0158
np_est=svyciprop(~ SMOKE100, nps_design)
np_est
                2.5% 97.5%
SMOKE100 0.489 0.458  0.52
ci=confint(svyciprop(~ SMOKE100, nps_design))
compare = tibble(estimate=np_est[1],
                lower_bound=ci[1],
                upper_bound=ci[2],
                method="nps")

The estimate of the proportion of individuals who smoked 100 or more cigarettes in their lifetime from the non-probability sample (NPS) is 48.9%, with a 95% confidence interval ranging from 45.8% to 52.0%. Note that the confidence interval does not include the true population proportion.

To improve our estimate, we will apply and compare various estimation techniques.

Classic approaches in weighting

In this part we will apply to standard approaches: raking and calibration.

  1. Start with raking. Follow the code in the slides and include the following variables AGECAT, RACECAT, EDCAT, and INETHOME
rake.dsgn <- calibrate(design = nps_design,
                        formula = ~ AGECAT + RACECAT + EDCAT + INETHOME,
                        calfun = "raking",
                        population = pop_tot)
  1. Now implement GREG. Consider the same variables as before
greg.dsgn <- calibrate(design = nps_design,
                        formula = ~ AGECAT + RACECAT + EDCAT + INETHOME,
                        calfun = "linear",
                        population = pop_tot)

#some weights are negative, we trim them
greg.dsgn<-trimWeights(greg.dsgn,lower=0, upper=Inf)
  1. Save the estimates and the confidence intervals that you obtain
np_rake=svyciprop(~ SMOKE100, rake.dsgn)
np_rake
                2.5% 97.5%
SMOKE100 0.545 0.491   0.6
ci=confint(svyciprop(~ SMOKE100, rake.dsgn))


compare <- compare %>%
  bind_rows(tibble(estimate=np_rake[1],
                lower_bound=ci[1],
                upper_bound=ci[2],
                method="raking"))


np_greg=svyciprop(~ SMOKE100, greg.dsgn)
Warning in summary.glm(g): observations with zero weight not used for
calculating dispersion
Warning in summary.glm(glm.object): observations with zero weight not used for
calculating dispersion
np_greg
                2.5% 97.5%
SMOKE100 0.528 0.474  0.58
ci=confint(svyciprop(~ SMOKE100, greg.dsgn))
Warning in summary.glm(g): observations with zero weight not used for
calculating dispersion

Warning in summary.glm(g): observations with zero weight not used for
calculating dispersion
compare <- compare %>%
  bind_rows(tibble(estimate=np_greg[1],
                lower_bound=ci[1],
                upper_bound=ci[2],
                method="greg"))

Inverse-probability weighting

When a probability sample is available

First, we assume that we have access to high quality data from a reference probability sample. Implement IPW using the nonprob function with the following specifications:

  1. Set up a selection model that includes the variables AGECAT, RACECAT, EDCAT, and INETHOME

  2. Use as target variable SMOKE100

  3. Use the probability sample design you created before as input for svydesign

  4. Use logistic regression in method_selection

  5. Save the estimate and the confidence interval

ipw_logit_ps <-
  nonprob(
    selection = ~ as.factor(AGECAT) + as.factor(RACECAT) + as.factor(EDCAT) + as.factor(INETHOME),
    target = ~ SMOKE100,
    data = np_sample,
    svydesign  = ps_design,
    method_selection = "logit"
  )

#display
cbind(ipw_logit_ps$output, ipw_logit_ps$confidence_interval)
              mean         SE lower_bound upper_bound
SMOKE100 0.5302948 0.03644835   0.4588573   0.6017322
#save
compare <- compare %>%
  bind_rows(tibble(estimate=ipw_logit_ps$output$mean,
                lower_bound=ipw_logit_ps$confidence_interval$lower_bound,
                upper_bound=ipw_logit_ps$confidence_interval$upper_bound,
                method="ipw_ps"))

The estimate is 53.02% (CI: 45.88% - 60.17%). This estimate is much closer to the true population proportion of 52.85%, and the confidence interval now includes the true value.

When only population information is available

Now we assume that only population totals are available.

  1. Implement IPW using the nonprob function with the previous specifications but instead of svydesign , specify the pop_totals.
ipw_logit_poptotals <-
  nonprob(
  selection =  ~ AGECAT + RACECAT + EDCAT + INETHOME,
  target = ~ SMOKE100,
  data = np_sample,
  pop_totals = pop_tot,
  method_selection = "logit"
  )

#display
cbind(ipw_logit_poptotals$output, ipw_logit_poptotals$confidence_interval)
              mean         SE lower_bound upper_bound
SMOKE100 0.5449075 0.07954355    0.389005     0.70081
#save
compare <- compare %>%
  bind_rows(tibble(
    estimate = ipw_logit_poptotals$output$mean,
    lower_bound = ipw_logit_poptotals$confidence_interval$lower_bound,
    upper_bound = ipw_logit_poptotals$confidence_interval$upper_bound,
    method = "ipw_pop_tot"
  ))

Now, the estimate is 54.49% but the confidence interval is quite large (CI: 38.9% - 70%). This wide interval suggests considerable uncertainty in the estimate.

Mass Imputation

When a probability sample is available

First, we assume that we have access to high quality data from a reference probability sample. Implement Mass Imputation using the nonprob function with the following specifications:

  1. Set up an outcome model for SMOKE100 that includes the variables AGECAT, RACECAT, EDCAT, and INETHOME

  2. Use the probability sample design you created before as input for svydesign

  3. Given the outcome type, select the correct option for the method_outcome and family_outcome

  4. Save the estimate and the confidence interval

mi_sample <- nonprob(outcome = SMOKE100 ~ AGECAT + RACECAT + EDCAT + INETHOME,
                        data = np_sample,
                     svydesign = ps_design,
                     method_outcome = "glm",
                     family_outcome = "binomial")

#display
cbind(mi_sample$output, mi_sample$confidence_interval)
              mean         SE lower_bound upper_bound
SMOKE100 0.5284921 0.02853384   0.4725668   0.5844174
#save
compare <- compare %>%
  bind_rows(tibble(
    estimate = mi_sample$output$mean,
    lower_bound = mi_sample$confidence_interval$lower_bound,
    upper_bound = mi_sample$confidence_interval$upper_bound,
    method = "mi_sample"
  ))

The estimate is 52.84% (CI: 47.1% - 58.4%).

When only population information is available

Now we assume that only population totals are available.

  1. Implement Mass Imputation using the nonprob function with the previous specifications but instead of svydesign , specify the pop_totals.
mi_poptotals <- nonprob(outcome = SMOKE100 ~ AGECAT + RACECAT + EDCAT + INETHOME,
                        data = np_sample,
                        pop_totals = pop_tot,
                        method_outcome = "glm",
                        family_outcome = "binomial")

#display
cbind(mi_poptotals$output,mi_poptotals$confidence_interval)
              mean         SE lower_bound upper_bound
SMOKE100 0.5303917 0.03275615   0.4661909   0.5945926
#save
compare <- compare %>%
  bind_rows(tibble(
    estimate = mi_poptotals$output$mean,
    lower_bound = mi_poptotals$confidence_interval$lower_bound,
    upper_bound = mi_poptotals$confidence_interval$upper_bound,
    method = "mi_pop_tot"
  ))

The estimate is 53.04% (CI: 46.6% - 59.5%).

Doubly-robust inference

When a probability sample is available

First, we assume that we have access to high quality data from a reference probability sample. Implement the Doubly-robust method using the nonprob function with the following specifications:

  1. Set up an outcome model for SMOKE100 that includes the variables AGECAT, RACECAT, EDCAT, and INETHOME

  2. Set up a selection model that includes the variables AGECAT, RACECAT, EDCAT, and INETHOME

  3. Use the probability sample design you created before as input for svydesign

  4. Given the outcome type, select the correct option for the method_outcome and family_outcome

  5. Use a logistic regression for the selection model

  6. Save the estimate and the confidence interval

dr_logit_sample <-
  nonprob(
    selection = ~ AGECAT + RACECAT + EDCAT + INETHOME,
    outcome = SMOKE100 ~ AGECAT + RACECAT + EDCAT + INETHOME,
    data = np_sample,
    svydesign = ps_design,
    method_selection = "logit",
    method_outcome = "glm",
    family_outcome = "binomial"
  )


#display
cbind(dr_logit_sample$output, dr_logit_sample$confidence_interval)
              mean         SE lower_bound upper_bound
SMOKE100 0.5263664 0.03303545   0.4616181   0.5911147
#save
compare <- compare %>%
  bind_rows(tibble(
    estimate = dr_logit_sample$output$mean,
    lower_bound = dr_logit_sample$confidence_interval$lower_bound,
    upper_bound = dr_logit_sample$confidence_interval$upper_bound,
    method = "dr_logit_sample"
  ))

The estimate is 52.53% (CI: 46.2% - 59.1%).

When only population information is available

Now we assume that only population totals are available.

  1. Implement the Doubly-Robust approach again using the nonprob function with the previous specifications but instead of svydesign , specify the pop_totals.
dr_logit_poptotals  <-
  nonprob(
    selection = ~  AGECAT + RACECAT + EDCAT + INETHOME,
    outcome = SMOKE100 ~ AGECAT + RACECAT + EDCAT + INETHOME,
    data = np_sample,
    pop_totals = pop_tot,
    method_selection = "logit",
    method_outcome = "glm",
    family_outcome = "binomial"
  )

#display
cbind(dr_logit_poptotals $output, dr_logit_poptotals $confidence_interval)
              mean         SE lower_bound upper_bound
SMOKE100 0.5467979 0.02724855   0.4933917   0.6002041
#save
compare <- compare %>%
  bind_rows(tibble(
    estimate = dr_logit_poptotals $output$mean,
    lower_bound = dr_logit_poptotals $confidence_interval$lower_bound,
    upper_bound = dr_logit_poptotals $confidence_interval$upper_bound,
    method = "dr_logit_poptotals"
  ))

The estimate is 54.7% (CI: 49.3% - 60.0%).

Comparing the results

Finally compare the estimates. Use can use ggplot to plot the data in the compare table.

compare$method=factor(compare$method, levels = c("dr_logit_poptotals","dr_logit_sample","mi_pop_tot","mi_sample","ipw_pop_tot", "ipw_ps", "greg", "raking","nps"))
compare %>%
ggplot(aes(
  y = method,
  x = estimate,
  xmin = lower_bound,
  xmax = upper_bound
)) +
  geom_point() +
  geom_vline(
    xintercept = 0.5285,
    linetype = "dotted",
    color = "red"
  ) +
  geom_errorbar() +
  labs(x = "Point estimator and confidence interval", y = "estimators")+theme_minimal()

Bayesian approaches

Multilevel regression and post-stratification

We use the data from from the 2018 Cooperative Cooperative Congressional Election Study, a US nationwide survey designed by a consortium of 60 research teams and administered by YouGov. The data and the guide with information about the survey and the questionnaire area available here.

This tutorial is adapted from the Book MRP Case Studies that you can find here.

Objectives
  • Estimate the proportion of individuals who support the cut in the Corporate Income Tax rate. The questionnaire item is the following:

Congress considered many changes in tax law over the past two years. Do you support or oppose each of the following?

CC18_325a Taxes – Cut the Corporate Income Tax rate from 39 percent to 21 percent. (Support/Oppose)

  • Compare the estimates obtained with the unadjasted nonprobability sample, with the estimates we would obtain if we had a large probability sample and the estimates obtained with MRP

The data

The variables are the following:

  • state : 50 US states

  • age : Age in classes, 18-29, 30-39, 40-49, 50-59, 60-69, 70+

  • male : Gender classified as male (1) or Female (2)

  • eth : Ethnicity classified as (Non-hispanic) White, Black, Hispanic, Other (which also includes Mixed)

  • educ : Education classified as No HS, HS, Some college, 4-year college, Post-grad

  • region : Geographical region classified in Northeast, North Central, South, and West

  • repvote : Republican vote share in the 2016 presidential election

If you follow the book example, some data pre-processing are needed. Here, for simplicity, we use a ready-to-use version of the data.

Before starting, you need to install and load the following packages:

library(tidyverse)
library(rstan)
library(rstanarm)
library(dplyr)
library(readr)

library(ggplot2)
library(bayesplot)
library(ggalt)
library(reshape2)

You have the following dataset available:

  • statelevel_predictors_df : for each one of the 50 US States contains the repvote and the region

  • cces_biased_df : a nonprobability sample of size 5.000 from which we obtain un-adjusted estimates and then MRP estimates

  • cces_all_df : is the full probability sample of size 59.693 observations that we use only for comparison

  • poststrat_df_full : is the poststratification table with population counts constructed considering the state, the ethniticy, the gender, the age and the education of individuals. As we defined the levels for these variables, the poststratification table must have \(50 \cdot 6 \cdot 2 \cdot 4 \cdot 5 = 12.000\) rows. This means we actually have more rows in the poststratification table than observed units, which necessarily implies that there are some combinations in the poststratification table that we don’t observe in our nonprobability sample. In this example, we ensured that all cells in the poststratification table were included, even if their weight was zero, but this was done solely for illustrative purposes.

statelevel_predictors_df <- read_csv('statelevel_predictors.csv')
load("cces_all_df.rda")
load("cces_biased_df.rda")
load("poststrat_df_full.rda")

Preliminary analyses

  1. Compare the composition of the nonprobability sample with respect to the population characteristics (in the poststratification table)

One of the possible solutions follows.

library(dplyr)
library(ggplot2)
library(ggalt)
library(reshape2)
library(forcats)

# Function to calculate sample and population proportions
calculate_proportions <- function(sample_df, poststrat_df, group_var) {
  sample_prop <- sample_df %>%
    group_by({{ group_var }}) %>%
    summarise(Sample = n() / nrow(sample_df))

  pop_prop <- poststrat_df %>%
    group_by({{ group_var }}) %>%
    summarise(Population = sum(n) / sum(poststrat_df$n))

  inner_join(sample_prop, pop_prop, by = as.character(substitute(group_var)))
}

# Function to create dumbbell plots
create_dumbbell_plot <- function(data, group_var, x_limits, title, x_label = "Proportion") {
  ggplot(data) +
    geom_dumbbell(aes(y = {{ group_var }}, x = Sample, xend = Population)) +
    geom_point(
      data = melt(data, id.vars = as.character(substitute(group_var))),
      aes(y = {{ group_var }}, x = value, color = variable),
      size = 2
    ) +
    coord_flip() +
    scale_x_continuous(limits = x_limits) +
    theme_bw() +
    labs(title = title, x = x_label, y = "") +
    theme(legend.position = "none")+
  scale_color_manual(values=c("#E37B1C", "#1CE37B"))
}




# Age Plot
age <- calculate_proportions(cces_biased_df %>% mutate(age = factor(age)), poststrat_df, age)
age_plot <- create_dumbbell_plot(age, age, c(0, 0.35), "Age", "Proportion")

# Gender Plot
gender <- calculate_proportions(cces_biased_df, poststrat_df, male) %>%
  mutate(male = factor(male, levels = c(-0.5, 0.5), labels = c("Female", "Male")))
gender_plot <- create_dumbbell_plot(gender, male, c(0, 0.6), "Gender")

# Ethnicity Plot
ethnicity <- calculate_proportions(cces_biased_df, poststrat_df, eth)
ethnicity_plot <- create_dumbbell_plot(ethnicity, eth, c(0, 0.9), "Ethnicity")

# Education Plot
education <- calculate_proportions(cces_biased_df %>% mutate(educ = factor(educ)), poststrat_df, educ)

education_plot <- create_dumbbell_plot(education, educ, c(0, 0.33), "Education")

# State Plot
state <- calculate_proportions(cces_biased_df, poststrat_df, state)

state_plot <- create_dumbbell_plot(state, state, c(0, 0.33), "State")+
  theme(legend.position="bottom")


# Display all plots

ggpubr::ggarrange(age_plot, gender_plot, ethnicity_plot,
                  education_plot, nrow=2,ncol=2,common.legend = TRUE, legend="bottom")



state_plot

We can see that in the nonprobability samples individuals tends to be older, male, white, less educated and from Republican states.

The Mister: MR

  1. In this section you need to implement a multilevel regression in order to predict the outcome (taxred) based on a set of factors.

  2. Use the stn_gmler function.

  3. Include in the model varying intercepts (1 | x) for: age, eth, educ, and state

  4. Include interactions (1 | x1:x2) between male and eth , educ and age and educ and eth

  5. Include as state-level predictors also repvote and region

  6. Use a logistic model

library(rstanarm)
fit <- stan_glmer(taxred ~ (1 | state) + (1 | eth) + (1 | educ) + (1 | age) + male +
                    (1 | male:eth) + (1 | educ:age) + (1 | educ:eth) +
                    repvote + factor(region),
                  family = binomial(link = "logit"),
                  data = cces_biased_df,
                  prior = normal(0, 1, autoscale = TRUE),
                  prior_covariance = decov(scale = 0.50),
                  adapt_delta = 0.99,
                  refresh = 0,
                  seed = 1010)

Running this code might be computational expensive, thus you can directly load the data with the results:

fit <- readRDS("my_fit.rds")

The P: Postststratification

The second step is to poststratify, but first we use our model to get an estimate for each row of the post-stratification table. Then, poststratification is implemented by weighting the estimate by the proportion of individual in that poststratification cell.

Thus, we first compute the proportion for each cell of the postratificaiton table:

poststrat_df <-poststrat_df %>%
  mutate(prop=n/sum(n),.by=state)

The following code shows how to:

  1. Generate predictions using the Bayesian Model:

    The first part of the code involves generating predictions for the poststratification data based on the Bayesian model we’ve estimated. This process uses the add_epred_draws() function to draw 4000 samples from the posterior predictive distribution.

  2. Compute the MRP estimates: The procedure involves the following steps:

  • Compute the Weighted Average Prediction: To obtain the MRP estimates, remember the formula in the slides: pred * n/N, where pred represents the predicted preference value, n is the number of people in each poststratification cell, and N is the total population size. This formula adjusts the predictions according to the size of each poststratification cell, giving a weighted average.
  • Summarize Predictions by State: For each state, aggregate the weighted predictions from all poststratification cells within that state. At this stage, you will have 4000 weighted predictions for each state.
  • Average the Predictions across the 4000 draws: Since we have 4000 draws, we compute the average prediction. To quantify the uncertainty, we calculate the 2.5th and 97.5th percentiles of the predictions, which form the lower and upper bounds of the 95% credibility interval, respectively.
library(tidybayes)
Warning: package 'tidybayes' was built under R version 4.3.1
mrp_estimates = fit %>%
  add_epred_draws(newdata = poststrat_df, ndraws = 4000) %>%
   rename(pred = .epred)  %>%
  mutate(ps_pred = pred * prop) %>%
  ungroup() %>%
  summarise(pred = sum(ps_pred),
            .by = c(state, .draw)) %>%
  summarise(
    estimate = mean(pred),
    lower_ci = quantile(pred, 0.025),
    upper_ci = quantile(pred, 0.975),
    .by = state
  )
  1. We want to compare the MRP estimates with those derived from an unadjusted nonprobability sample and with estimates from a large probability sample. To accomplish this, you can use the following code. Remember that:
  • To compute the confidence interval, you first need to determine the standard deviation of the variable (Bernoulli).
  • The confidence interval is then computed as the estimate plus or minus 2 times the standard dev. This is because, under the assumption of a normal distribution, approximately 95% of the data lies within 2 standard deviations of the mean.
# Function to calculate the standard error for a Bernoulli distribution
get_se_bernoulli <- function(p, n) {
  sqrt(p * (1 - p) / n)
}

# Define the states
state_abb <- datasets::state.abb

# Function to calculate estimates and confidence intervals for a given dataset
calculate_estimates <- function(data, state_abb) {
  data %>%
    filter(state %in% state_abb) %>%
    group_by(state) %>%
    summarize(
      estimate = mean(taxred, na.rm = TRUE),
      n_sample = n(),
      se = get_se_bernoulli(estimate, n_sample),
      lower_ci = estimate - 2 * se,
      upper_ci = estimate + 2 * se
    ) %>%
    ungroup()
}

# Calculate estimates and confidence intervals for both datasets
biased_estimates <- calculate_estimates(cces_biased_df, state_abb)
full_estimates <- calculate_estimates(cces_all_df, state_abb)

# Combine the results into one dataset (in wide format)
states_df <- biased_estimates %>%
  rename_with(~ paste0("biased_", .), -state) %>%
  left_join(full_estimates %>%
              rename_with(~ paste0("full_", .), -state), by = "state") %>%
  left_join(mrp_estimates%>%
              rename_with(~ paste0("mrp_", .), -state), by = "state")

Compare the results

  1. Compare the results using ggplot
# Plotting the comparison using ggplot
ggplot(states_df) +
  geom_point(aes(x = state, y = biased_estimate, color = "Unadj. NPS")) +
  geom_errorbar(aes(x = state, ymin = biased_lower_ci, ymax = biased_upper_ci, color = "Unadj. NPS"), width = 0) +
geom_point(aes(x = state, y = full_estimate, color = "Large PS")) +
  geom_errorbar(aes(x = state, ymin = full_lower_ci, ymax = full_upper_ci, color = "Large PS"), width = 0) +
  geom_point(aes(x = state, y = mrp_estimate, color = "NPS with MRP")) +
  geom_errorbar(aes(x = state, ymin = mrp_lower_ci, ymax = mrp_upper_ci, color = "NPS with MRP"), width = 0) +
  labs(
    title = "Comparison of Estimates and Confidence Intervals by State",
    x = "State",
    y = "Estimate and 95% CI",
    color = "Sample Type"
  ) +
  scale_color_manual(values = c("Unadj. NPS" = "#E37B1C", "NPS with MRP" = "#7B1CE3", "Large PS" = "#1CE37B")) +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

Acknowledgments

Some of the exercises are adapted from:

  • Valliant, R., Dever, J. A., & Kreuter, F. (2018). Practical tools for designing and weighting survey samples (Vol. 1). New York: Springer.

  • The MRP Case Studies online book that you can find here.
